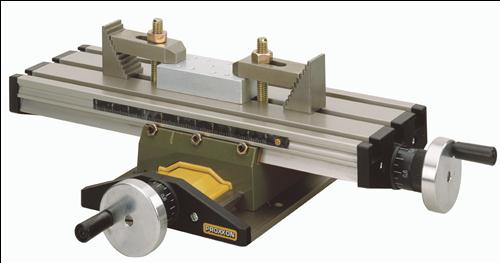

Product Description

MICRO
Compound Table
KT 70

For increasing the function of the MB 140/S and TBM 220.
Stable aluminium with surface treatment.

Solid aluminium with surface treatment and adjustable dovetail slides for minimum play. Three T-slots to MICROMOT standard 12 x 6 x 5 mm. Adjustable ruler scale eases workpiece positioning. Zero-resettable hand wheels are calibrated to provide 1 mm movement per revolution, one division equals 0.05 mm. The clamps and securing bolts for the MB 140/S and TBM 220 are included.

NO 27 100


Dividing Head for MICRO Miller MF 70 and Compound Table KT 70 Used to drill off-set holes and to mill off-set slots, rectangles, hex shapes, etc. The scale on the housing enables high accuracy divisions. Chuck with reversible jaws: clamps 1.5 - 32 mm (internal) and 12 - 65 mm (external). The 11 mm bore allows the passage of longer work pieces when used in the horizontal position. With fixation borings for horizontal and vertical assembly as well as suitable sliding blocks and fixation screws for assembly to MICRO Miller MF 70 and Compound Table KT 70. 72 x 64 x 38 mm. Supplied in wooden box with sliding lid. NO 24 264

General Data: Table size 200 x 70 mm. Travel is 134 mm (x axis) and 46 mm on the y axis. Height 42 mm.			Two clamps are included.
			Table size 200 x 70 mm.
			Handwheel with adjustable dials. 1 revolution = 1.0 mm, 1 division = 0.05 mm.
			Moveable ruler eases workpiece positioning.
