Proxxon Fræsari: IB/E
Regular price
36.650 kr
Unit price
/
Unavailable
Product Description
Professional Drill/Grinder IB/E
|
For drilling, milling, grinding, polishing, cleaning, cutting, carving, engraving and signing.
|
Ideal for mechanics, model builders, jewellers, opticians and electronic enthusiasts and professionals.
|
High concentric accuracy (max. run out 3/100ths of a mm).
This high revving, special motor has full-wave electronic speed control. The ground steel spindle runs in a ball bearing, so minimising play. 6 high concentricity collets (1.0 - 1.5 - 2.0 - 2.4 - 3.0 and 3.2 mm and locking nut).
Technical Data:
5,000 - 20,000 rpm. 220 - 240 V, 50/60 Hz. 100 W. Stable head of die-cast aluminium; main housing made of fibreglass reinforced POLYAMIDE. Length 230 mm. Weight 500 g. Insulation to class 2. With 20 mm MICROMOT system fitting at the front which allows use in our drill stand and clamps.
Packed in a robust plastic case, complete with 34 bits and cutters.
Packed in a robust plastic case, complete with 34 bits and cutters.
Note:
MICROMOT steel collets are hardened and thus have a high, consistent flexibility. They also maintain prolonged accuracy, even after regular use (these collets should not be compared with unhardened four-slit collets of brass and aluminium). The triple slit collet is substantially more difficult to manufacture than the four-slit type, but offers a better load-bearing surface. This is especially important for cutters with small shank diameters.
NO 28 481
MICROMOT Steel Collets
As described above. Fits all MICROMOT machines, excluding the engraver GG 12. One of each 1.0 -1.5 - 2.0 - 2.4 - 3.0 and 3.2 mm and locking nut are included.
NO 28 940
 |
Ball bearing spindle of ground steel with lock button for rapid cutter changing.
|
 |
Quality without compromise: isolation to class 2.
|
 |
Streamlined head of die cast aluminium for exact bearing seats and optimal stability.
|
 |
Quiet, powerful 100 W motor with full wave electronics for speeds between 5,000 and 20,000 rpm.
|
 |
Complete with six triple slit steel collets from 1.0 - 3.2 mm.
|

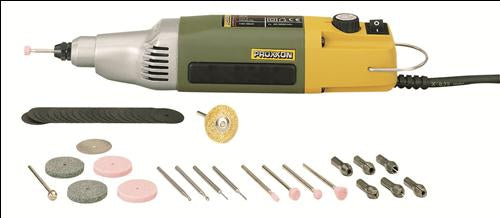

The Professional Drill/Grinder IB/E is supplied with the 34 tools shown above in a new, high-quality PP storage case. It has a strong frame, is extremely stable and large enough to repack in the case without "fiddling around". With lateral sticker for identification of the content. |
