Vörulýsing

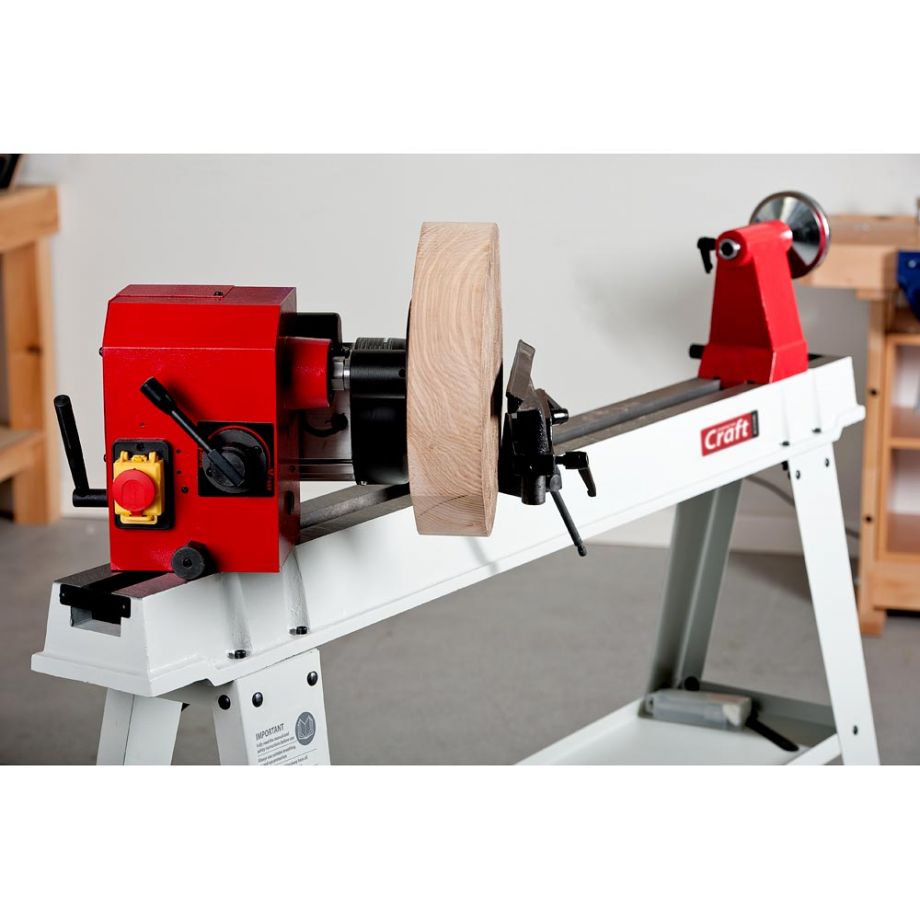

The AC370WL is a powerful value-for-money cast iron woodturning lathe with plenty of capacity, with a larger motor to match the larger capacities. This floor standing woodturning lathe has several major features that set it apart. The centre height is a full 185mm giving it a massive 370mm maximum turning diameter over the bed. The distance between centres is a very useful 1,100mm for turning longer spindles and similar items. The headstock swivels and can slide along the length of the bed, giving the facility to set the headstock in the most convenient position to suit the work. The variable spindle speed system has ten steps which gives a wide range of speed options. With a simple twist of a lever you can switch between the following speeds;
Step 1 – 500 rpm
Step 2 – 620 rpm
Step 3 – 760 rpm
Step 4 – 900 rpm
Step 5 – 1050 rpm
Step 6 – 1210 rpm
Step 7 – 1400 rpm
Step 8 – 1590 rpm
Step 9 – 1790 rpm
Step 10 – 2000 rpm
Supplied with 4-prong Axminster drive centre, Axminster revolving tailstock centre, 150mm faceplate, outboard tool rest extension, 300mm tool rest and floor stand.
N.B. The distance between centres will vary slightly depending on the type of centres or accessories used.
Key Features
- 750W 1ph 230V induction motor
- Cast iron bed, headstock, tailstock and tool rest holder
- Variomatic speed control 500-2,000rpm, 10 steps
- Swivelling headstock indexed at 45° and 90°
- Centre height 175mm
- Distance between centres 1,100mm
- Headstock can slide along the length of the bed, secure lever operated cam lock
- Complete with floor stand, 4 prong drive centre, revolving centre, faceplate, tool rest extension and 300mm tool rest
