Borðsög AW254TS

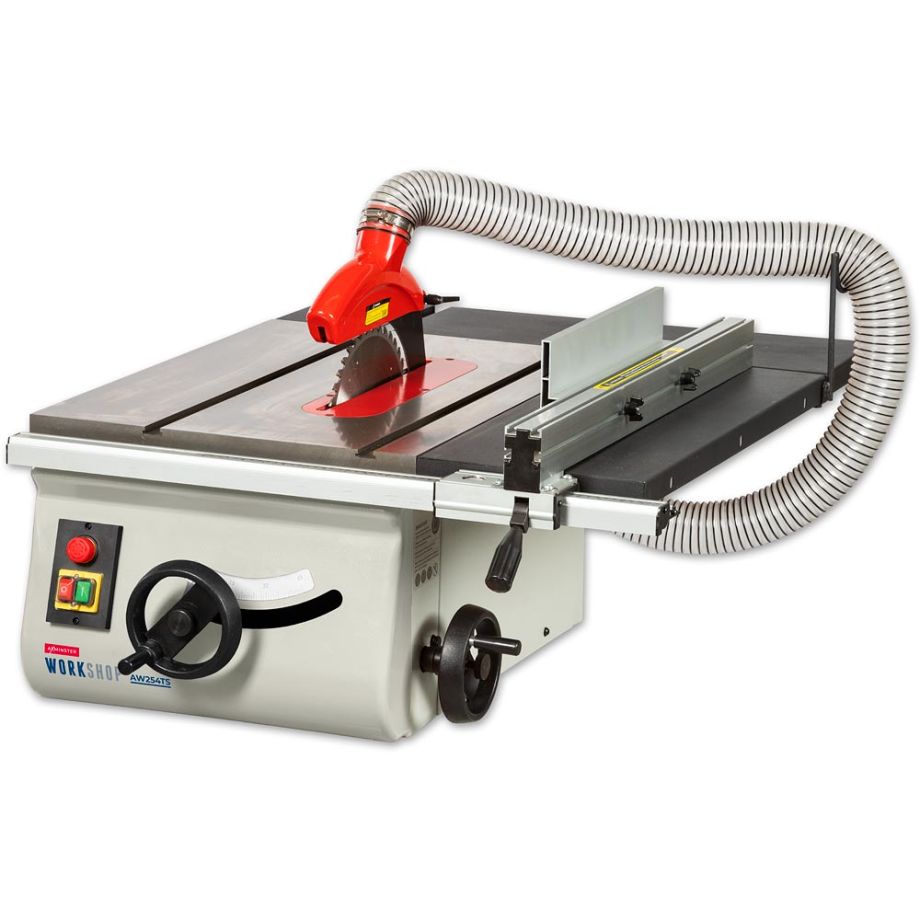

The AW254TS Workshop saw bench brings the cutting capacity of the trade workshop into the home workshop.

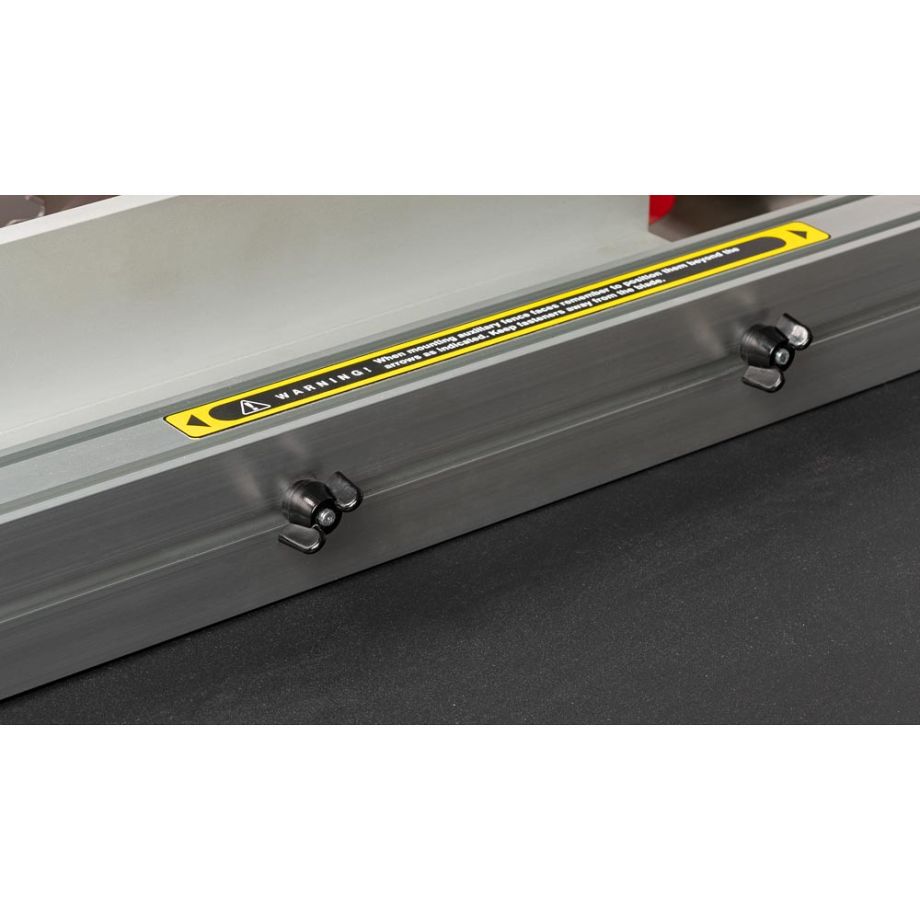

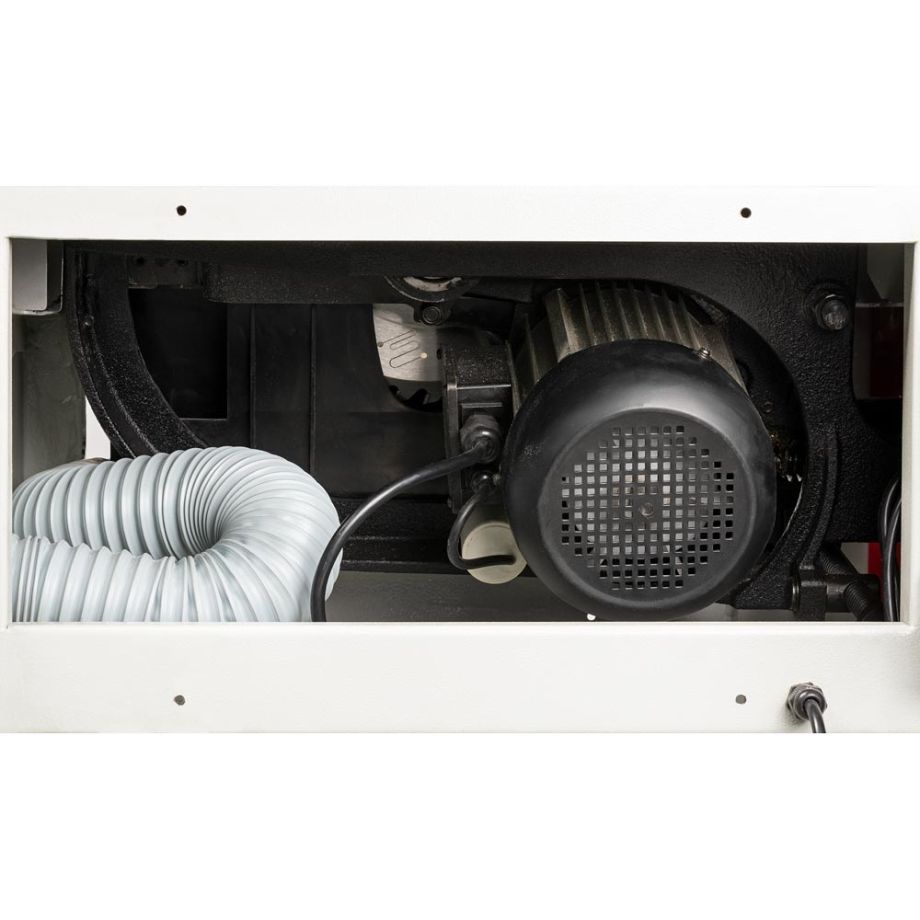

The saw features a quiet 1,500W induction motor, an important consideration in a residential neighbourhood. The generous ground cast iron table comes with the benefit 19mm mitre fence T-slots on the right and the left of the blade. A 254mm Axcaliber 50 tooth blade, offers a maximum 80mm depth of cut. The full length rip fence includes a sliding sub fence with high/low functions.

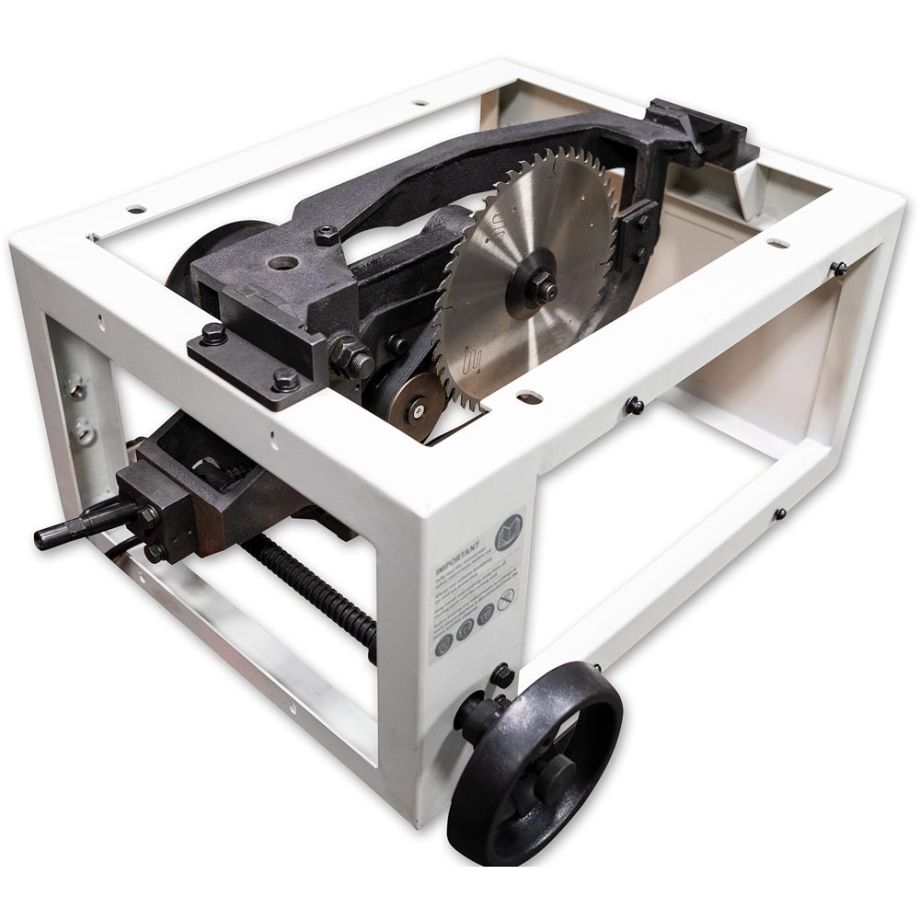

The tilt and height adjustment mechanism is bolted to the chassis as opposed to the underside of the table. The result is exceptionally smooth operation and without any weight hanging beneath the table causing stress.

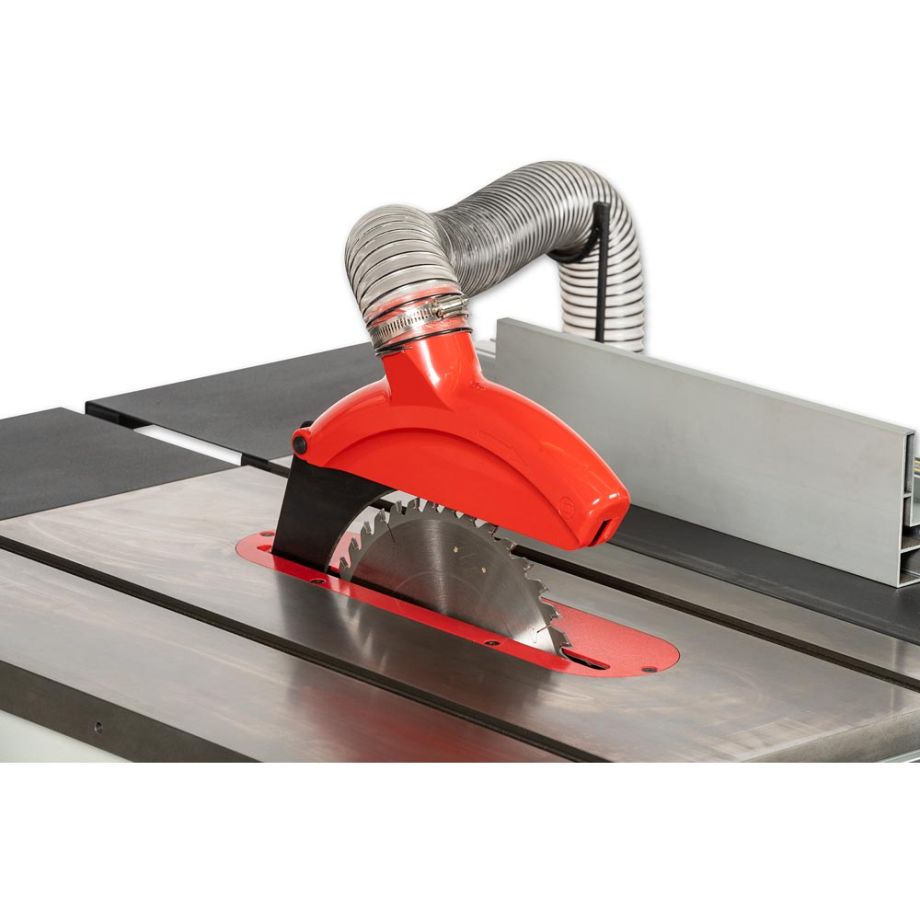

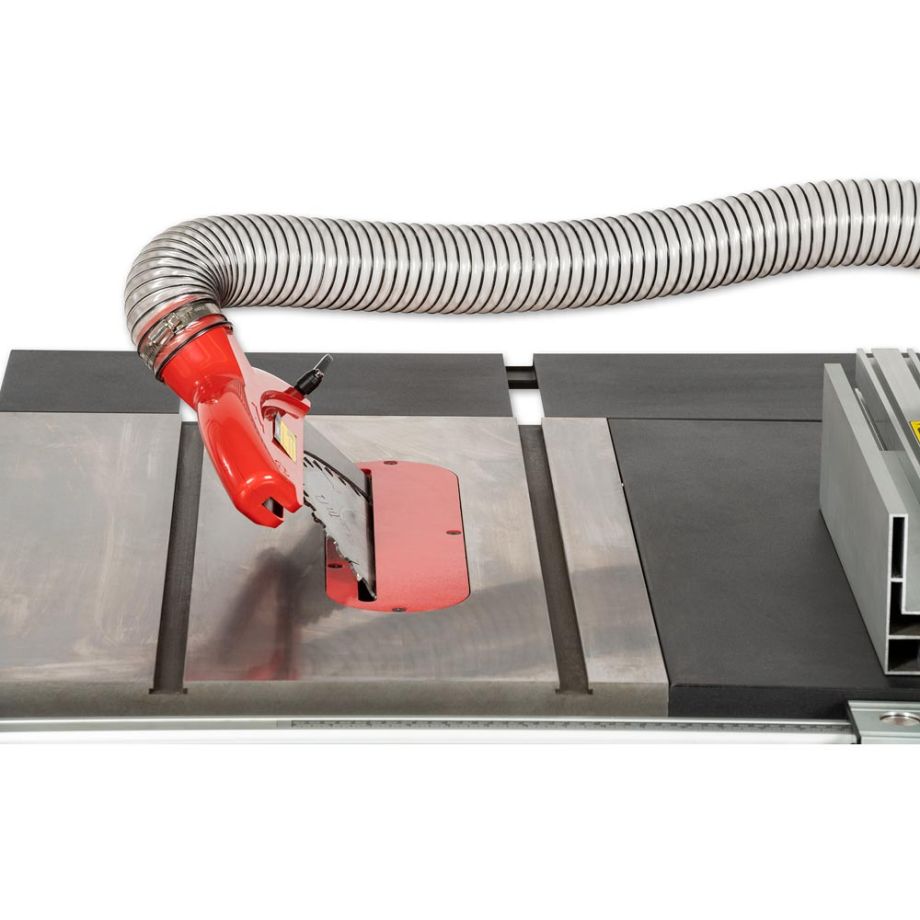

Efficient dust extraction from above the blade and below the table is brought to a single 100mm dust port for connection to an extractor.
The NVR switch includes a separate locking Emergency Stop function. Removable side panels to allow cleaning and maintenance.
The AW254TS is supplied with side and rear extension tables.
Also available as a package including the sliding table kit and leg stand (720849).
| Blade Diameter | 254 mm |
|---|---|
| Blade RPM | 3,000 rpm |
| Blade Tilt | 0° to 45° |
| Bore Size | 30 mm |
| Dust Extraction Outlet | 100 mm & 63 mm |
| Max Depth of Cut @ 45º | 56 mm |
| Max Depth of Cut @ 90º | 80 mm |
| Max Width of Cut with Fence | 430 mm with R/H Ext |
| Min Extraction Airflow Required | 1,000 m³/hr |
| Nett Weight | 89 kg |
| Overall L x W x H | 1,070 mm x 800 mm x 649 mm (without stand) |
| Plug Fitted | UK 3 pin plug |
| Power | 1.5 kW |
| Rating | Home Workshop |
| Sound Power Level LwA [Uncertainty K] | 94 dB(A) [2.5 dB] |
| Sound Pressure Level LpA [Uncertainty K] | 78 dB(A) [2.5 dB] |
| T Slot Size | 19 mm x 9.5 mm (3/4" x 3/8") |
| Table Height | 375 mm (bench mounted) |
| Table Size | 485 mm x 680 mm |
| Table Size With Extensions | 760 mm x 900 mm |
| Voltage | 230 V |
