Axminster  |  Vörunúmer: 107646

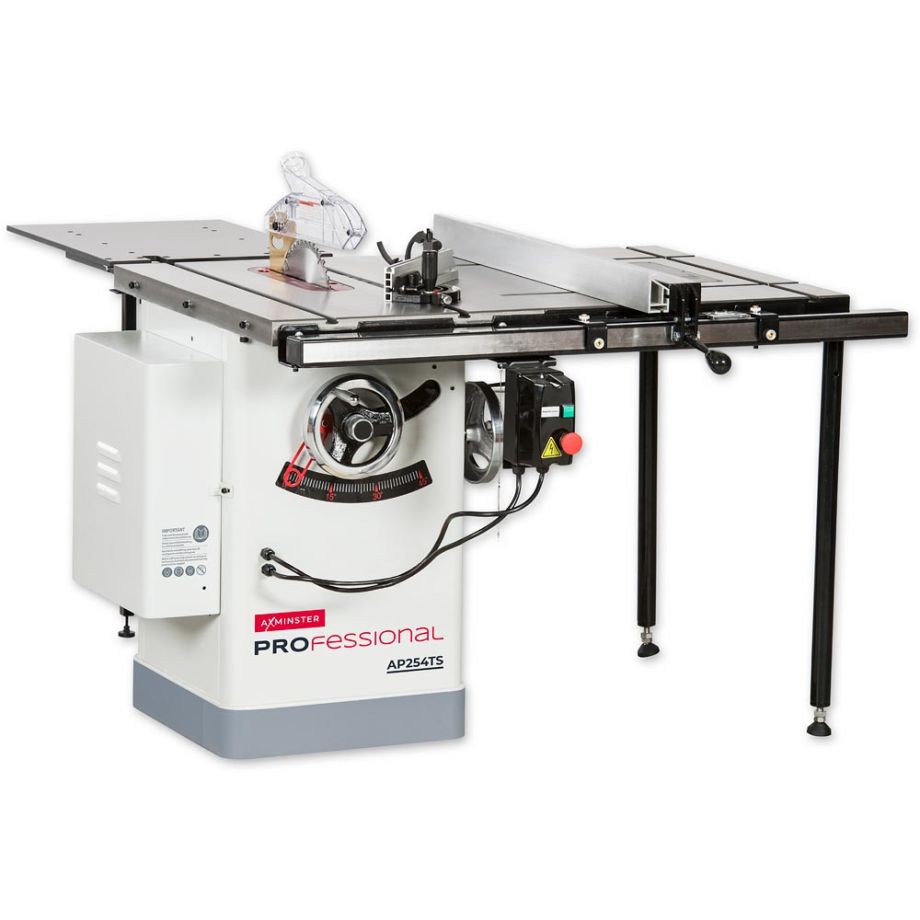

Borðsög AP254TS Axminster Pro

Venjulegt verð 868.301 kr
Skattur innifalinn


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Exacting precision during manufacture and a very high build quality result in a machine that stands out above all others.

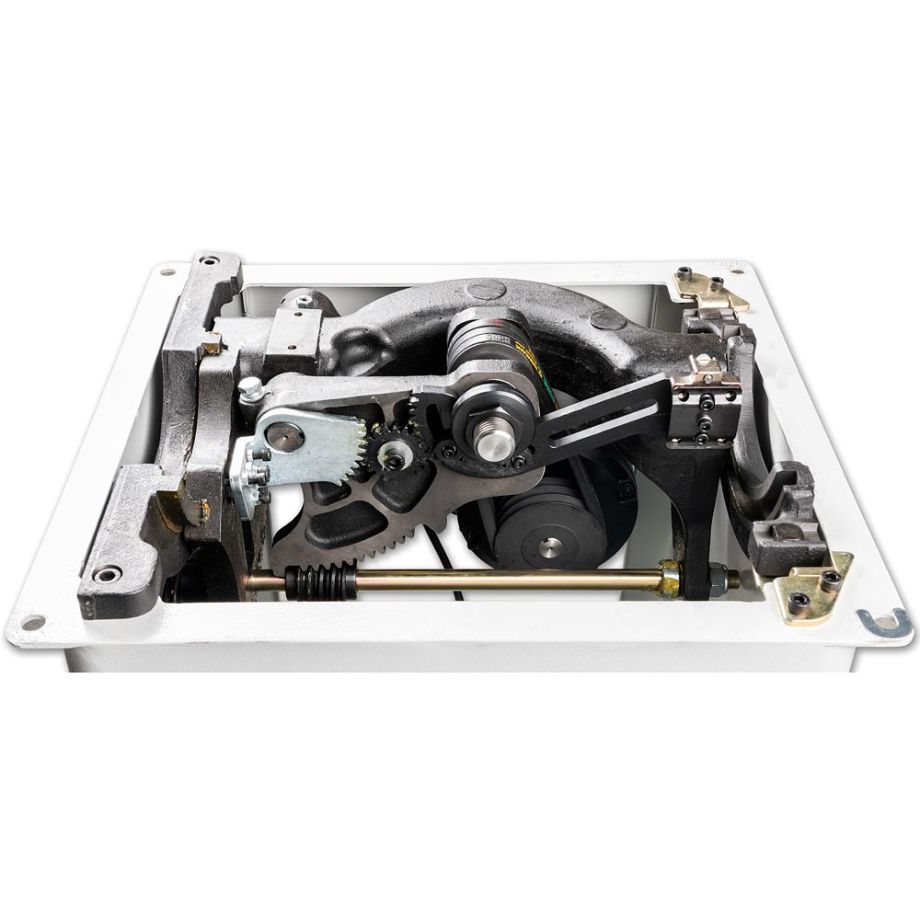

The design centres around a heavy duty welded steel stand, to which is attached the entire workings of the machine. A massive, curved iron casting supports the motor and blade arbor, giving huge rigidity and blade support. This leaves the table completely unstressed and gives superb, smooth control of blade height and tilt adjustments.

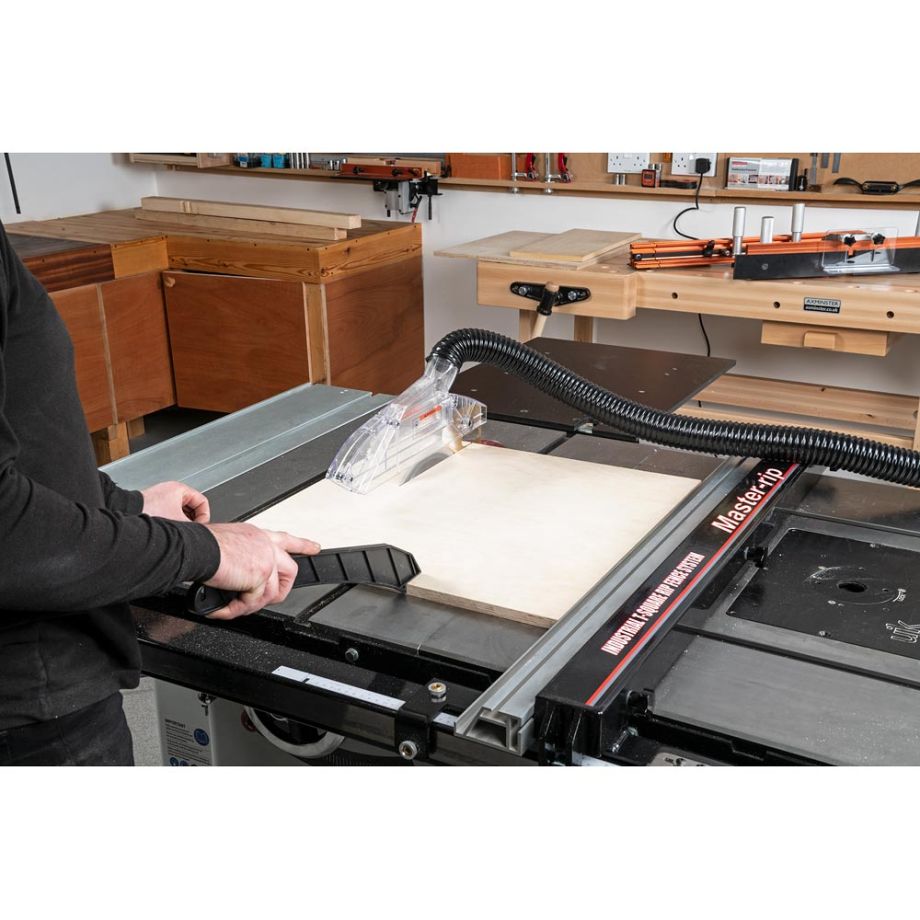

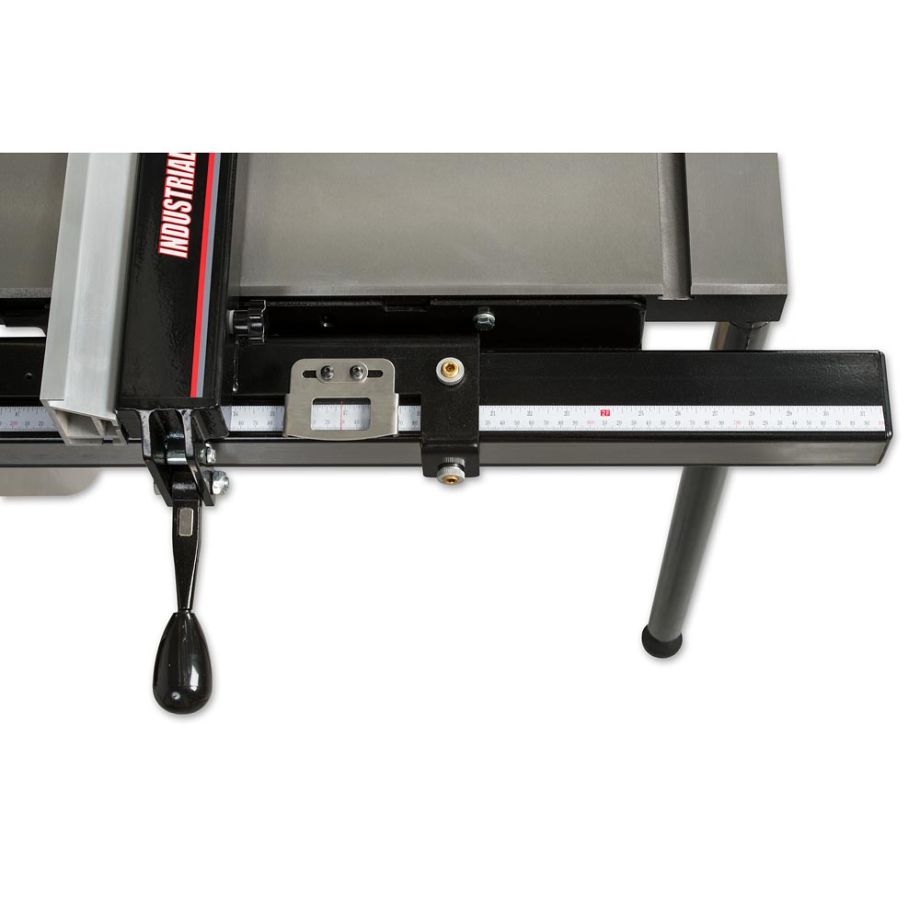

The cast iron table has twin 19mm mitre fence slots. The kerf plate is adjustable to the table surface. The riving knife is easily removed by releasing a simple latching pin. The full length rip fence with a T-square style mounting, glides smoothly and locks rock solid in position. A Hi-Lo sliding fence rail is included.

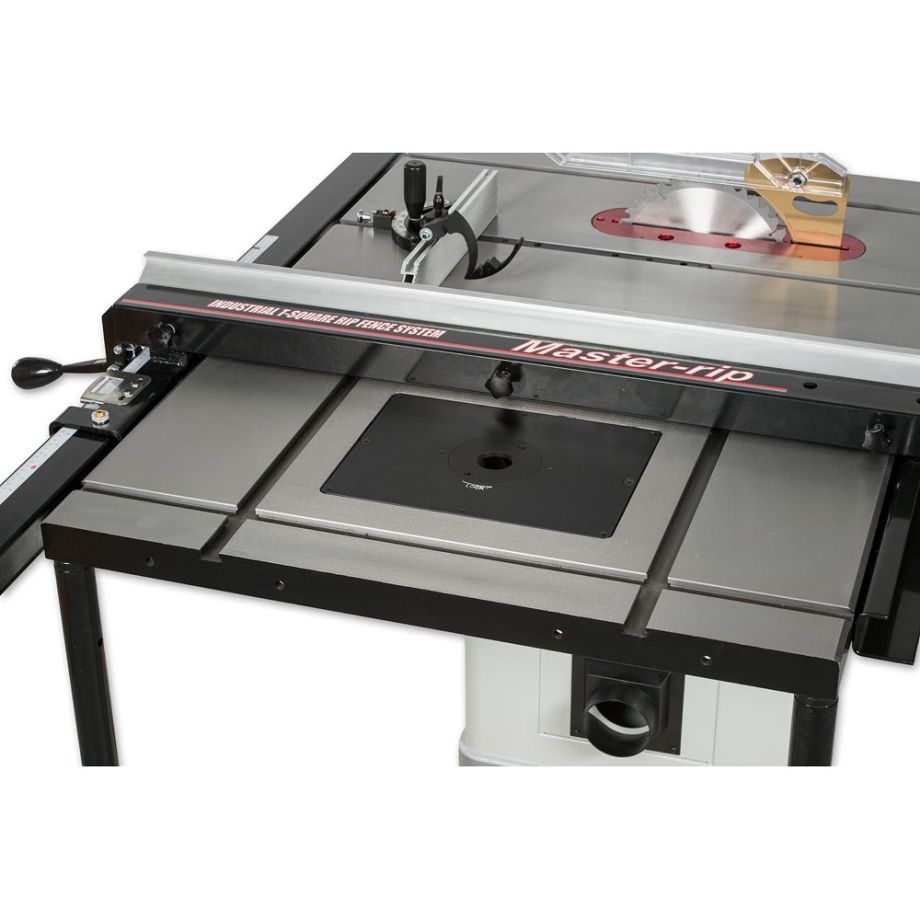

The AP254TS comes with a cast iron, right hand side extension table, which doubles as a router table. It is machined to take a UJK 10mm Router Insert Plate or UJK Router Lift. Twin grooves are machined into the extension table for mounting a UJK RT-100 router fence.

This table saw can be added to with several optional extras, including a 1,400mm sliding table complete with a UJK sliding table fence, the S-12 Overhead Crown Guard System, and a Dado Blade Set.

Supplied with a top quality TCT blade, this table saw will suit any busy professional workshop

N.B. This Machine requires a 16amp supply and it's recommended that a C Type breaker is used, if you are unsure please contact a qualified electrician.

Key Features

  • Unique design built to exacting standards with cast iron table

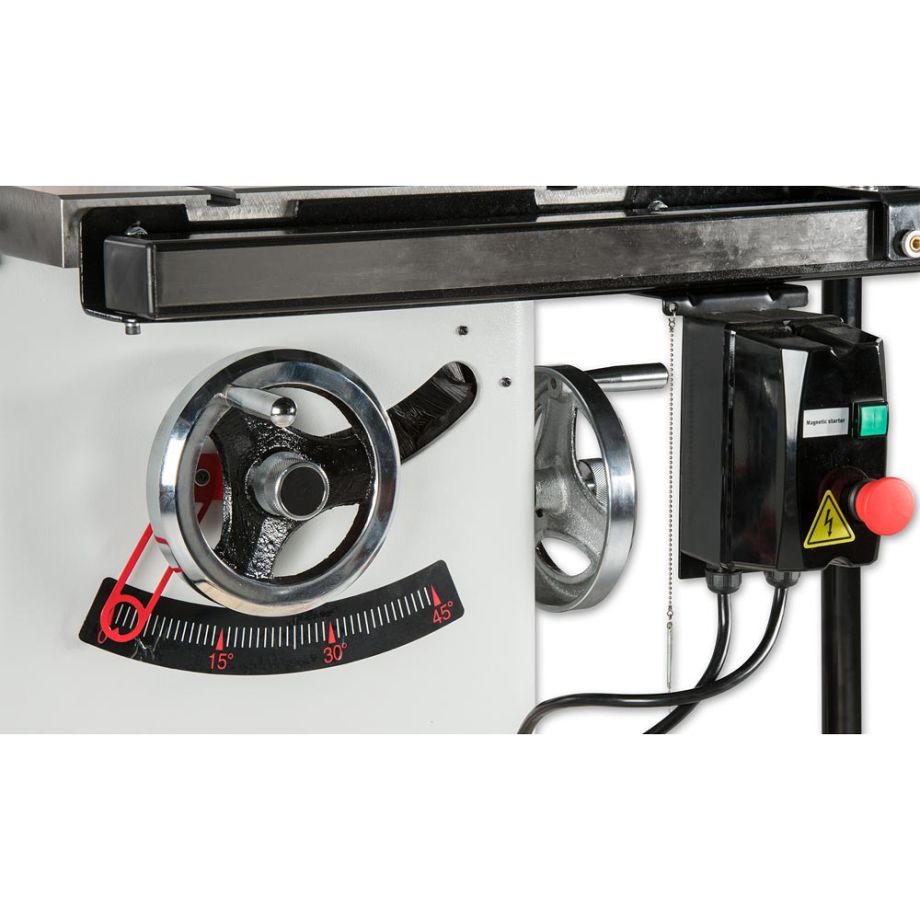

  • Super smooth blade adjustment controls, quick change riving knife
  • Cast iron R/H side extension table machined to take a UJK router plate
Blade Diameter 254 mm
Blade RPM 4,150 rpm
Blade Tilt 0° to 45°
Bore Size 30 mm
Dust Extraction Outlet 100 mm 50 mm
Max Depth of Cut @ 45º 50 mm
Max Depth of Cut @ 90º 70 mm
Max Width of Cut with Fence 740 mm
Min Extraction Airflow Required 1,200 m³/hr
Nett Weight 290 kg
Overall L x W x H 2,009 mm x 1,148 mm x 1,010 mm
Plug Fitted None
Power 2.2 kW
Rating Trade/Professional
Riving Knife Thickness 2.4 mm
Sound Pressure Level LpA [Uncertainty K] 68 dB(A) [1.5 dB]
T Slot Size 19 mm x 9.5 mm (3/4" x 3/8")
Table Height 863 mm
Table Size 800 mm x 550 mm
Table Size With Extensions 800 mm x 1,200 mm
Voltage 230 V
