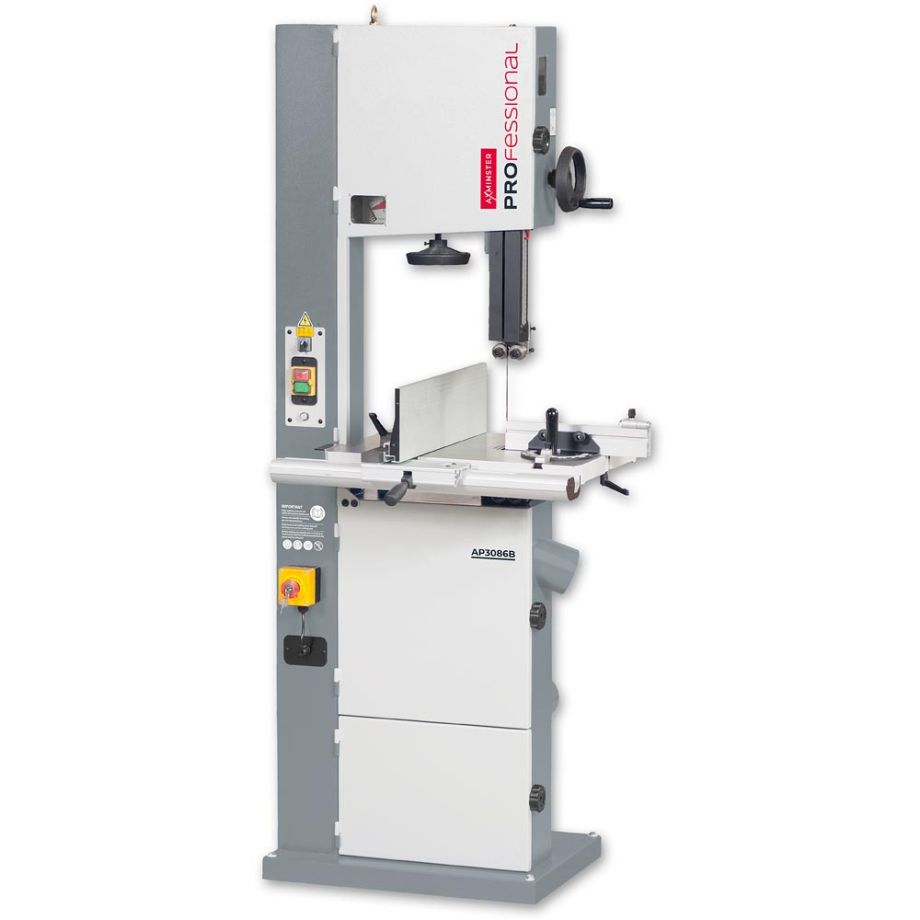

Bandsög Pro AP3086B
This bandsaw packs a real punch with an unrivalled 350mm cutting depth.
Manufactured in thick gauge welded steel and cast iron to a very high standard.
The AP3086B is fitted with a key released emergency stop switch and interlocked doors for safe operation. There is a convenient tool and accessory storage cupboard in the lower half of the chassis. Plus, it comes fitted with a standard 3 pin plug, so you’re all ready to go.

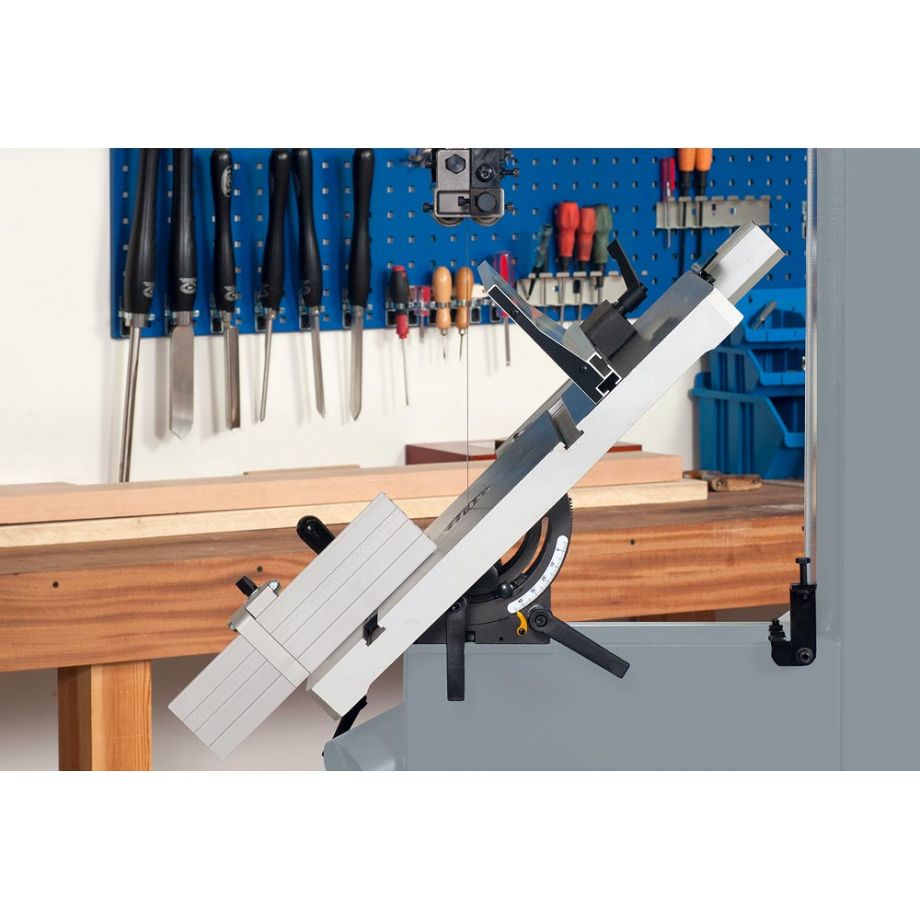

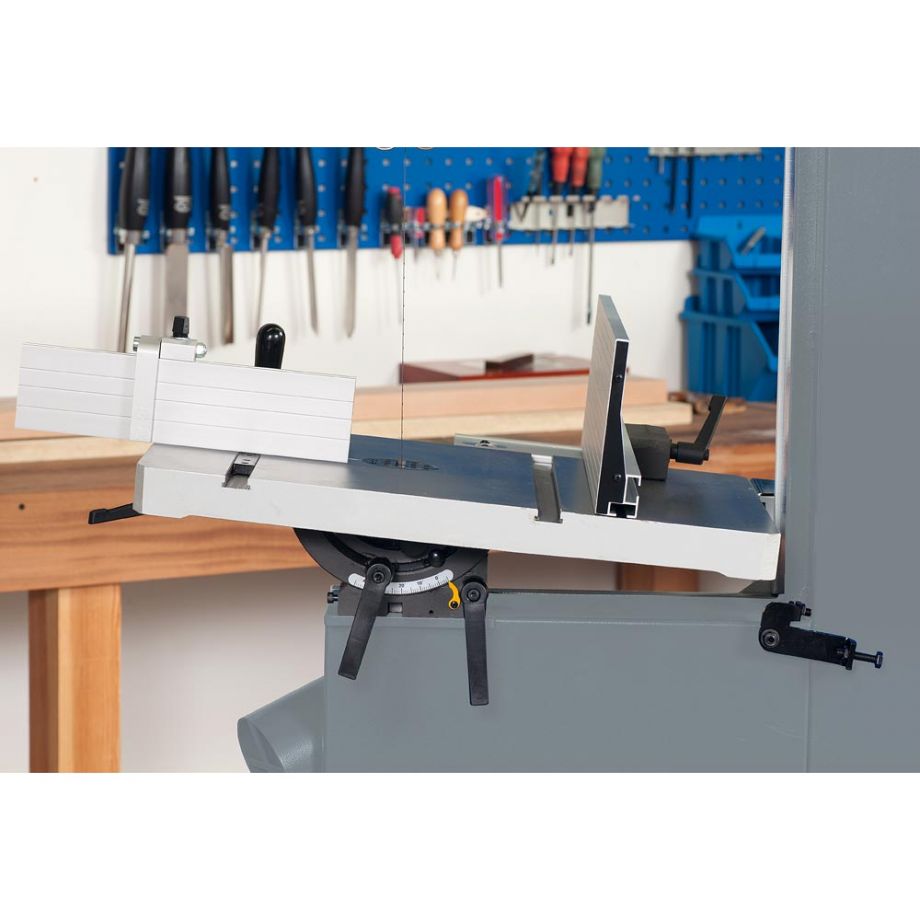

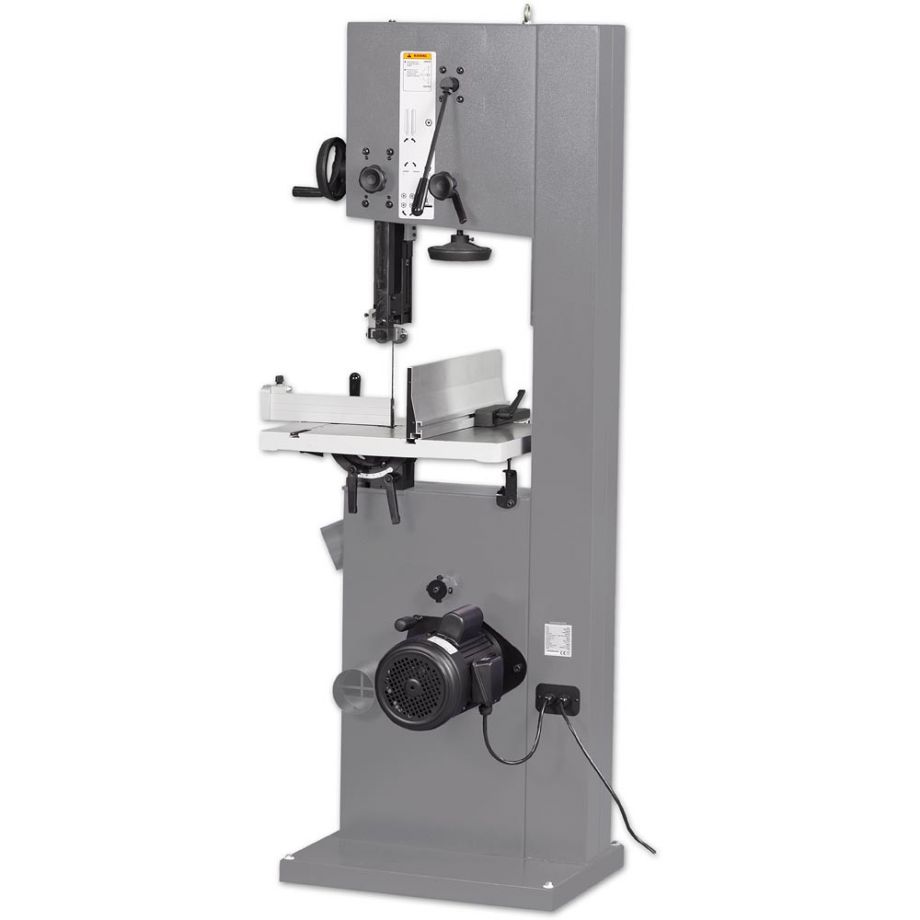

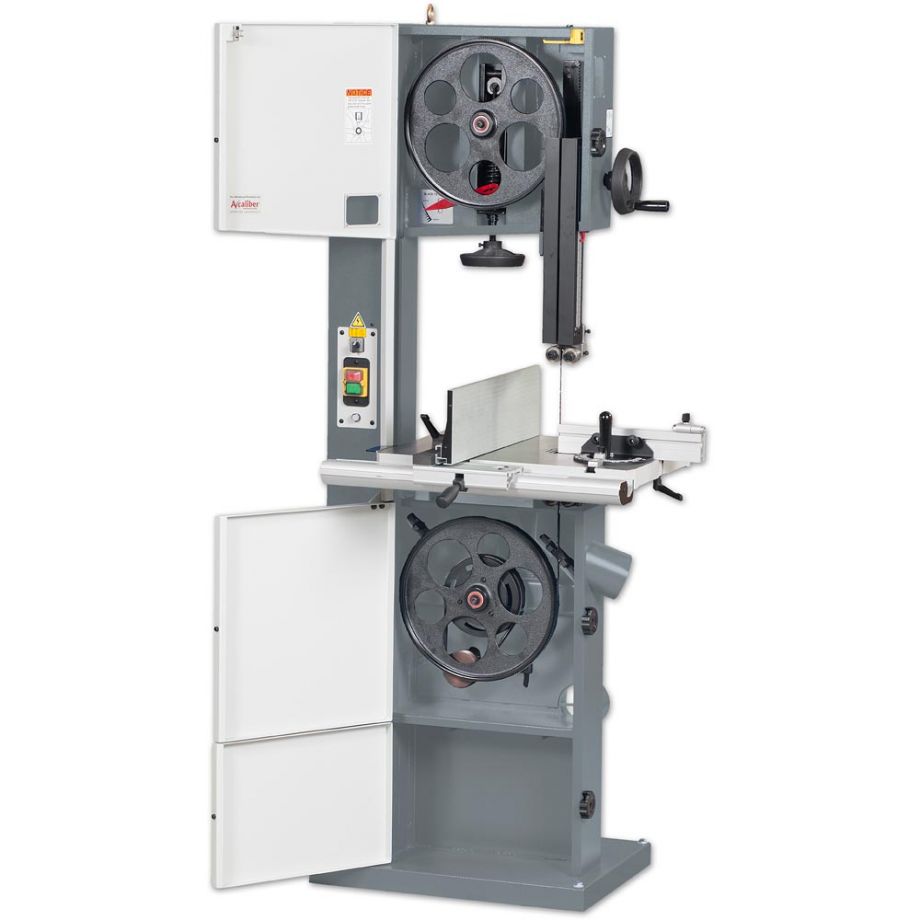

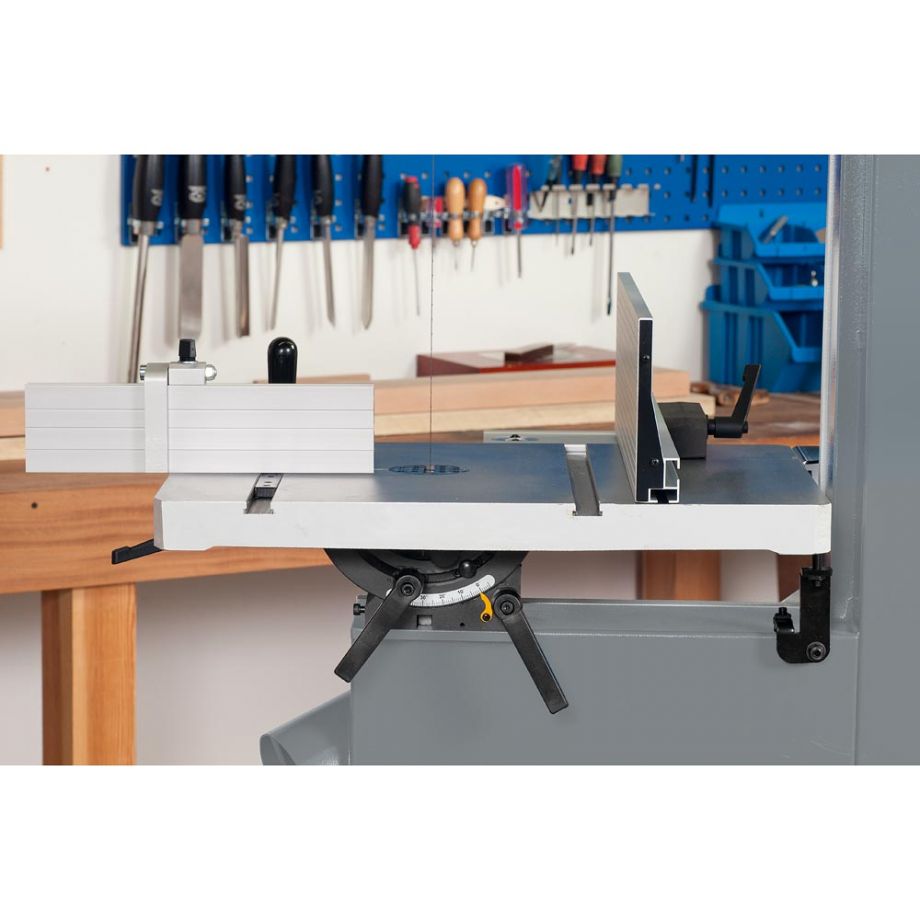

The electro-magnetically braked motor is smooth and powerful. The AP3086B features balanced, cast iron wheels, heavy duty bearing blade guides and a very rigid, full size cast iron table with tilt adjustment from -5° to +45° on a rack and pinion mechanism for ease of adjustment.

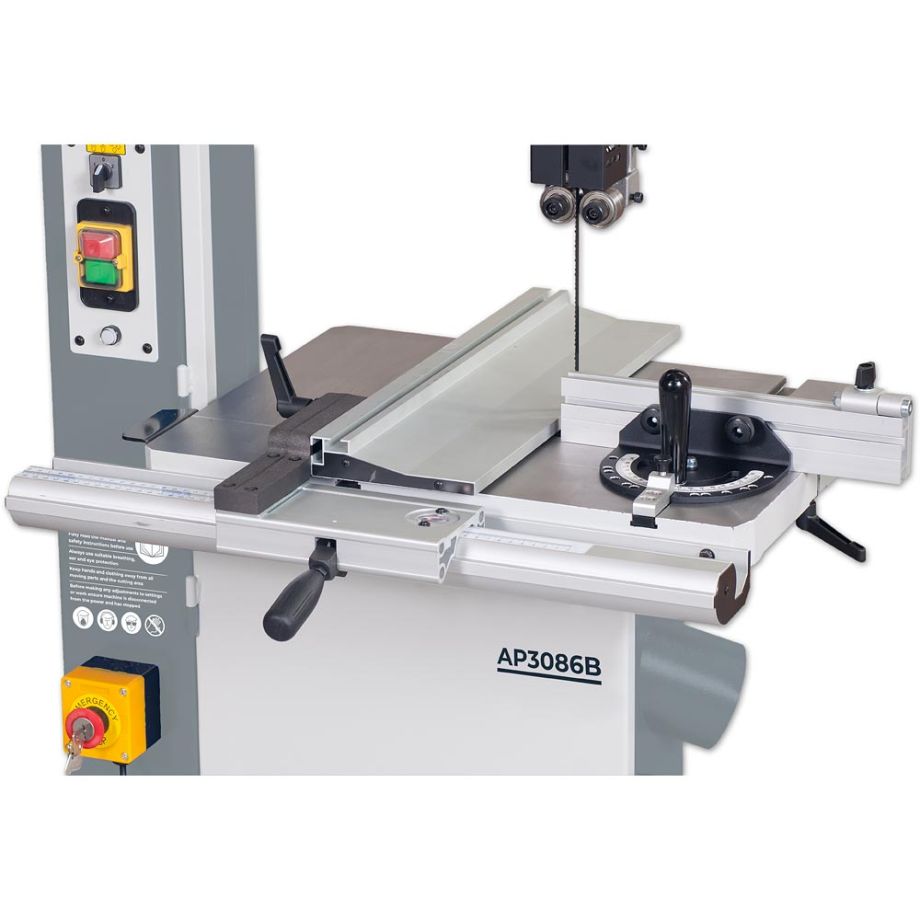

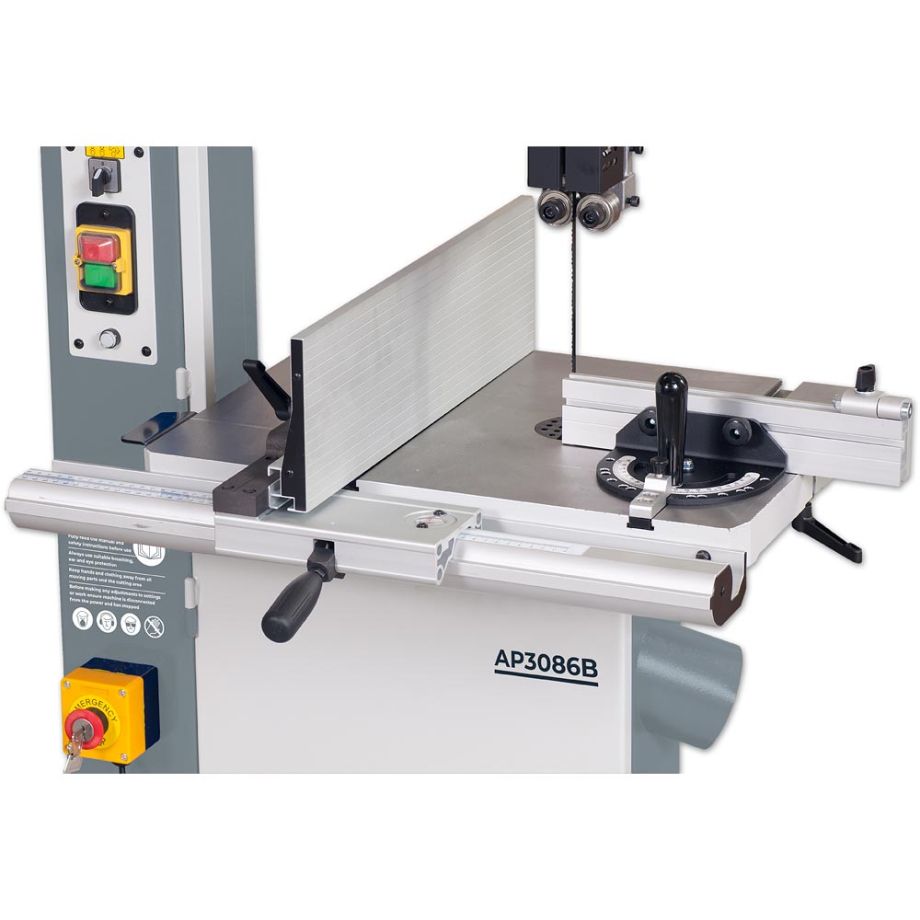

Blade changing is done using a quick release blade tensioning lever, which greatly speeds up the process. The rip fence has a cast iron bracket and features a Hi/Lo fence rail for tall or thin work. A cam lock clamps the fence to the guide rail securely and a magnifying lens makes the scale easy to read. The mitre fence is a precision unit, fitted with an indexed position stop pin for easy and precise angle setting. Dust extraction is via 2 x 100mm ports, enabling dust-free use when connected to a suitable extractor.
This AP3086B is fully compliant with both the requirements of BS 4163:2014 (educational establishments) and PUWR98 (workplace) regulations.
Supplied with a 9.5mm x 6 tpi bandsaw blade.
Key Features
- Max depth of cut 356mm, max width of cut 342mm
- Powerful, smooth running, electro-mechanically braked induction motor
- Heavy duty blade guide bearings
| Bandsaw Blade Length | 3,086 mm (121.1/2") |
|---|---|
| Bandsaw Wheel Diameter | 355 mm |
| Blade Speed | 720 m/min |
| Blade Width Min\Max | 3 mm to 19 mm |
| Dust Extraction Outlet | 2 x 100 mm |
| Max Cutting Height | 356 mm |
| Max Width of Cut | 342 mm |
| Max Width of Cut with Fence | 315 mm |
| Min Extraction Airflow Required | 1,500 m³/hr |
| Nett Weight | 145 kg |
| Overall L x W x H | 740 mm x 825 mm x 1921 mm |
| Plug Fitted | UK 3 pin plug |
| Power | 1.5 kW |
| Rating | Trade/Professional |
| Sound Power Level LwA [Uncertainty K] | 100.1 dB(A) [2.0 dB] |
| Sound Pressure Level LpA [Uncertainty K] | 83 dB(A) [2.0 dB] |
| T Slot Size | 19 mm x 9.5 mm (3/4" x 3/8") |
| Table Height | 940 mm |
| Table Height on Stand | N/A |
| Table Size | 552 mm x 410 mm |
| Table Tilt | 5° - 0° - 45° |
| Voltage | 230 V |
